DREDGER BAS are mobile vessels, consisting of a propulsion system, flotation system, power unit, cutting head and sludge pump, specially designed to extract or dig material from seabed, lake, river or channel.

MODELS AVAILABLES



These models are available with the following options:

  • Equipped with special cutters for delicate environments in order to protect the Geo membrane in artificial lagoons.
  • Made of special materials for harsh environments.
  • Equipped with different types of cutting heads according to material to be dredged.

BUILDING

The material of the different elements that compose the BAS dredger is selected depending of the dredging site and the type of material to be dredged. Stainless steels, fiberglass, special alloy steels are available for harsh environments and abrasive materials.

APPLICATIONS

BAS DREDGERS are widely used for the recovery and maintenance of sedimentation ponds of industries as diverse as:

  • Paper mills.
  • Petrochemical plants.Draga
  • Power plants.
  • Food processors.
  • Mining industry: recovery of fine minerals and cleaning of acid sludge.
  • Sugar mills.

Other applications include:

  • Recovery of lakes and lagoons.
  • Dredging of watersheds and canals.
  • Dredging of dams and rivers.

Dredger BAS with Diesel Engine Operated by Cable



draga-4               Draga-2



Dredge driven by a cable translation system, ideal for applications in water bodies with regular shapes

and sizes that do not exceed 150 meters in the direction of dredging. This type of dredger has an

operator on board and requires the installation of guide wires between the shores for displacement.

The power unit has a Diesel engine driving several units Hydraulic systems for all Dredger systems.



Dredger BAS with Electric Motor Operated by Cable



 draga-10             draga-11



Dredge powered by a cable transfer system, ideal for applications in bodies of water with regular shapes

and sizes that do not exceed 150 meters in the direction of dredging. This type of dredger is operated

from the shore with a remote control system via cable and requires the installation of guide wires between

the shores for their displacement and power supply. The power unit is composed of a mixed

electric and hydraulic drive system for the various Dredge systems.

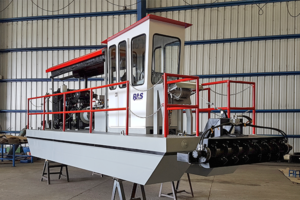

Dredged BAS Self Propeled with Diesel Engine



draga-13               draga-12



Dredge self propelled by a propeller system similar to those used in ships and boats, ideal for

applications in large bodies of water and irregular shapes. This type of dredger has an

operator on board it and does not have any restrictions on its movement, as it does not

require the installation of guide wires between the shores for their movement.

The power unit has a diesel engine driving various hydraulic units for all Dredger systems.
